MTPS Series Single Corn Peeling Machine

Product properties
  • Summary:MTPS Series Corn Peeling Machine can remove corn skin or bran efficiently. It is used as the supporting equipment in corn processing technology or as the single equipment.

MTPS Series Corn Peeling Machine can remove corn skin or bran efficiently. It is the newly designed corn peeling equipment based on wide market research, customers’ opinion and various corn peeling machines advantages. It is used as the supporting equipment in corn processing technology or as the single equipment.
MTPS Series Corn Peeling Machine mainly consists of feeding mechanism, spiral propeller, peeling chamber, emery roller, transmission mechanism, discharging device and dust remover. It is usually used in corn peeling, wheat peeling, soybean peeling, mung bean peeling and sorghum peeling.

Shown at Exhibition Hall:

MTPS Series Maize Bran Removing Machine at exhibition hall.jpg


Workshop Processing for Corn Peeling Machine:
maize skin peeling machine


MTPS Corn Peeling Machine Working Principle:

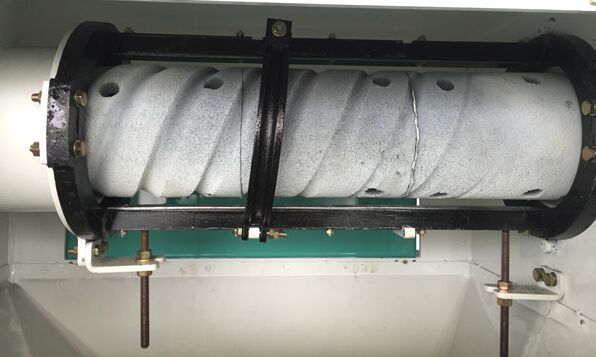

MTPS Series Corn Peeling Machine adopts emery roll structure, which almost has no breakage to grain endosperm. It utilizes high-speed rotating emery blade to cut and rub the corn bran and damage the bonding strength between the corn and the endosperm and the germ so as to make the corn bran, wheat bran or bean bran separated. It can also separate the corn germs and black spots during peeling process. The internally installed effective air draft chamber can collect the bran from the peeling process.

Corn Peeling Machine Features:

1. The internally installed air draft and dust removing system ensures the best sanitation condition.

2. Easy operation and maintenance, quick-replaceable sieve plate and other accessories, durable emery roll.

3. Even quality of the end products, multi-adjusting methods, reliable quality.

4. Moderate peeling process. Low grain consumption in peeling process.

5. Also suitable for dry method processing technology, which is more sanitary than wet method.


End products of the corn peeling machine:



MTPS Corn Peeling Machine Technical Parameter: (Letter A means external air blower. Letter B means internally installed air blower)

Type Emery Roll
Diameter(mm)
Emery Roll Length(mm) Spindle Speed(r/min) Capacity(t/h) Power(kw) Air Volume(m³/h) Dimension(mm)
MTPS-18Y/A Φ180 660 1300 1-1.5 22   1370×700×1900
MTPS-18Y/B Φ180 660 1300 1-1.5 22 1500-1800 1410×1220×2030
MTPS-25Y/A Φ240 660 1050 2.5-3.5 30   1515×660×2100
MTPS-25Y/B Φ240 660 1050 2.5-3.5 30 1800-2100 1515×1220×2100
MTPS-30Y/A Φ300 800 850 4-6 37-45   1690×710×2180



CORN PEELING MACHINE VIDEO:

Corn Peeling Machine
